Descriptions

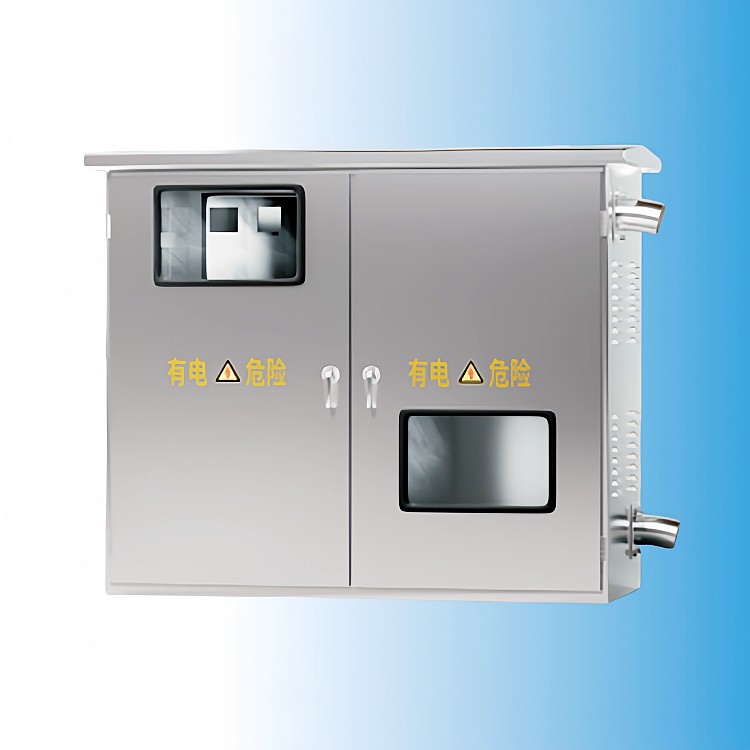

JP series outdoor integrated distribution box is based on the requirements of power grid construction and transformation and power grid operation experience, in line with the principles of safety, economy, reasonable and reliable design, with power distribution, control, protection, reactive power compensation, electric energy measurement and other multi-functional new outdoor integrated distribution box, at the same time JP series outdoor integrated distribution box can be added to the leakage protection function according to user requirements. The product has the advantages of novel structure, rationality, high level of protection, convenient installation and commissioning,easy maintenance. JP series outdoor integrated distribution box conforms to GB7251.1-1997, and has passed 3C certification, which is the ideal low-voltage complete set of equipment in the current power grid transformation.
Model Description
Working condition
- Environment temperature: -40℃~+55℃
- Relative humidity: ≤90% (relative Environment temperature is 20℃~25℃)
- Altitude: no more than 2000m
- Suitable for installation in the box, not suitable for fire, explosion risk, serious pollution, chemical corrosion and violent vibration;
Main Technical Parameters
|
Serial number |
Name |
Units |
Value |
|
1 |
Transformer capacity |
KVA |
30-400 |
|
2 |
Rated operating voltage |
V |
Ac400 |
|
3 |
Auxiliary loop operating voltage |
V |
AC220,AC380 |
|
4 |
Rated frequency |
HZ |
50 |
|
5 |
Rated current |
A |
≤630 |
|
6 |
Rated dropping action current |
A |
30-300 |
|
7 |
Protection level |
IP44 |
Outline dimensions
Horizontal box dimensions
|
Transformer capacity |
Scheme number |
L |
W |
H |
|
30-100KVA |
01, 06 |
800 |
450 |
700 |
|
30-250KVA |
02, 04, 07, 09 |
900 |
500 |
700 |
|
100-400KVA |
03, 05,08,10 |
1100 |
600 |
800 |
Vertical box dimensions
|
Transformer capacity |
Scheme number |
L |
W |
H |
|
30-100KVA |
01, 06 |
600 |
450 |
1000 |
|
30-250KVA |
02, 04, 07, 09 |
700 |
500 |
1000 |
|
100-400KVA |
03, 05,08,10 |
800 |
600 |
1100 |
Note: The above dimensions are for reference only
